Garbage Country Logbook 2018 pt.3

Week 40

First day of October. First day of new logbook because the old one was getting sluggish in Typora. Must be all the GIFs.

Durability

I have to add a durability system I guess. What are the requirements for this?

Creep affects durability in a deterministic and predictable fashion. Durability decreases at a maximum rate regardless of how much creep is attached.
- Durability objects are updated on a slow timer that applies the capped accumulated damage. That way, only a maximum of damage is applied each tick (perhaps 5 minutes or so)
Blocks that are cleared of creep are repaired completely. Removing creep is the only maintenance required, no additional repairing is needed.
Falling debris damages blocks, instantly affecting durability. Damage is automatically repaired over time (like above).
- Debris keeps a list of affected objects to prevent dealing damage to the same object twice.

Tasks For Playtest

	Time	Prio
Core Game Loop	1 week	High	Winning? Death? Points?
Core Game Loop Design	2 days	High
Interface / Controls	1 week	Medium	Improve build mode UI, Cursors
Graphics	1 week	Medium	Fog Lighting, Day/Night Cycle
Additional Mechanics	1 week	Medium	Durability Rubble
Content	1 week	Low	Additional Plants Objects
Polish	1 week	Low	Particles TransformUpdater interpolation

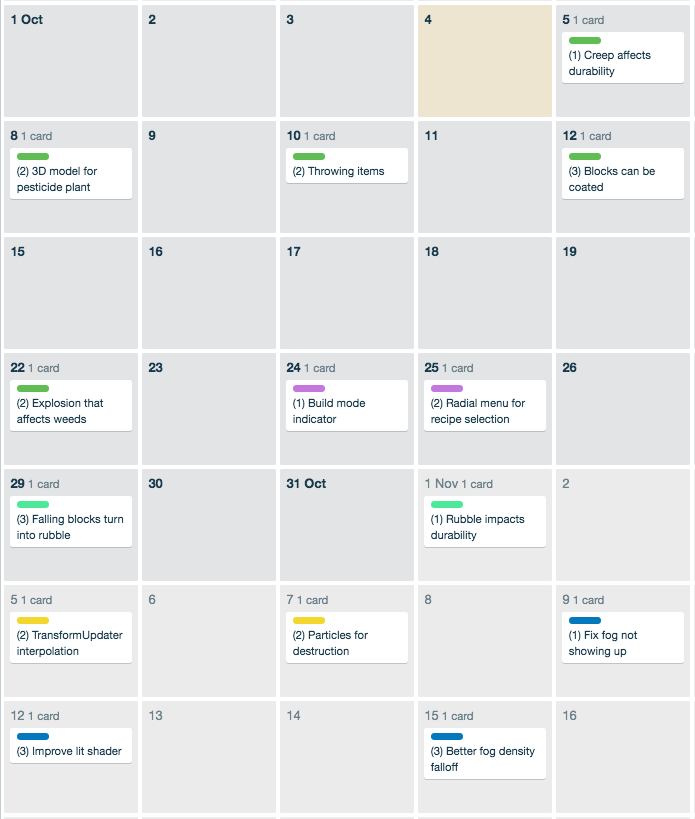

I wrote down the tasks and split them out to figure out how much time they would cost. I hope that will keep me focused until I can launch a playtest at the end of November.

2018-10-04 at 11.56.46

I finished an ECS system that updates the durability of objects and destroys them if the damage reaches a certain threshold. I also did a quick pass on a system for loading in the Config dynamically from a web url instead of always having to do a recompile. Not exactly essential but I think it will save me some time (over time).

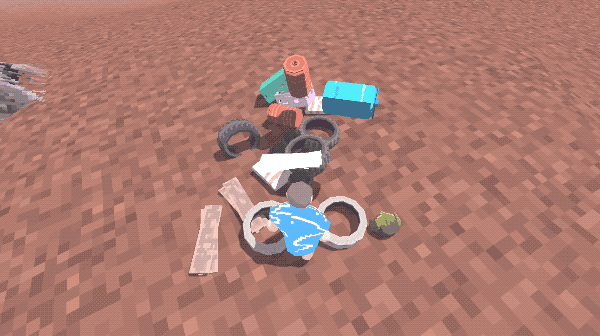

Throwing objects works but looks pretty shitty because of the latency between object creation and the actual throwing:

2018-10-05 15-05-14.2018-10-05 15_08_05

Week 41

2018-10-08 10.57.41

2018-10-08 at 13.56.44

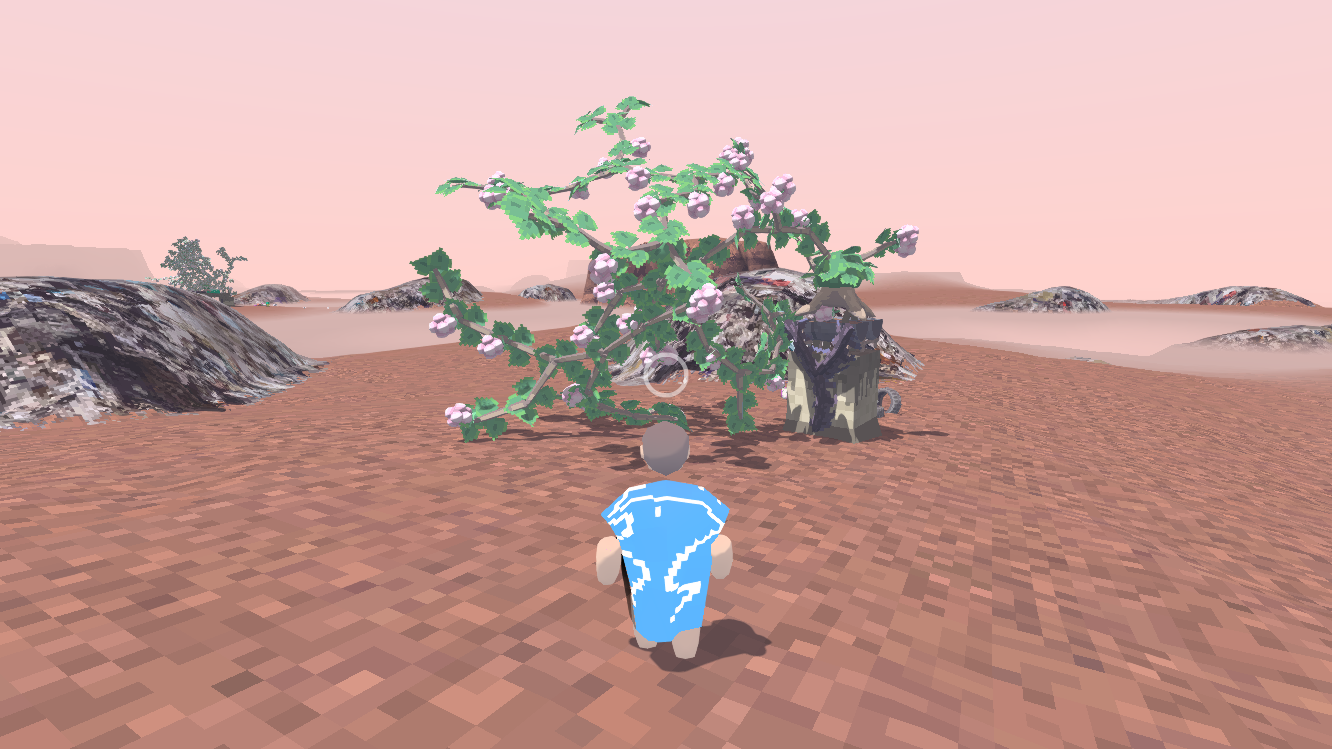

Made some 3d models for the splat plant. Quite cool to see it grow:

2018-10-08 at 17.42.01

Cutting a plant should be able to yield a bunch of objects. This does mean that cutting the root will again need to iterate over every node to spawn objects. 👈 ‘tis done.

Trying to decouple the plants from SpatialOS to allow a little test unity scene where I can iterate on the plant design. Created a PlantCore class that encapsulates this functionality that will be used by the Network Sender / Receiver classes.

Possible methods for selecting a socket + template for a new node:

Keep a list of open sockets every time a node is added or removed:
- Added: add child sockets
- Removed: Remove child sockets & add this socket
Do a full scan for sockets periodically (when successfully added)
1. add address/type tuples
2. select one randomly from list

How to track the sockets:

Keep list of socket addresses, check for templates when selected
Keep a nested structure, for each bucket track sockets

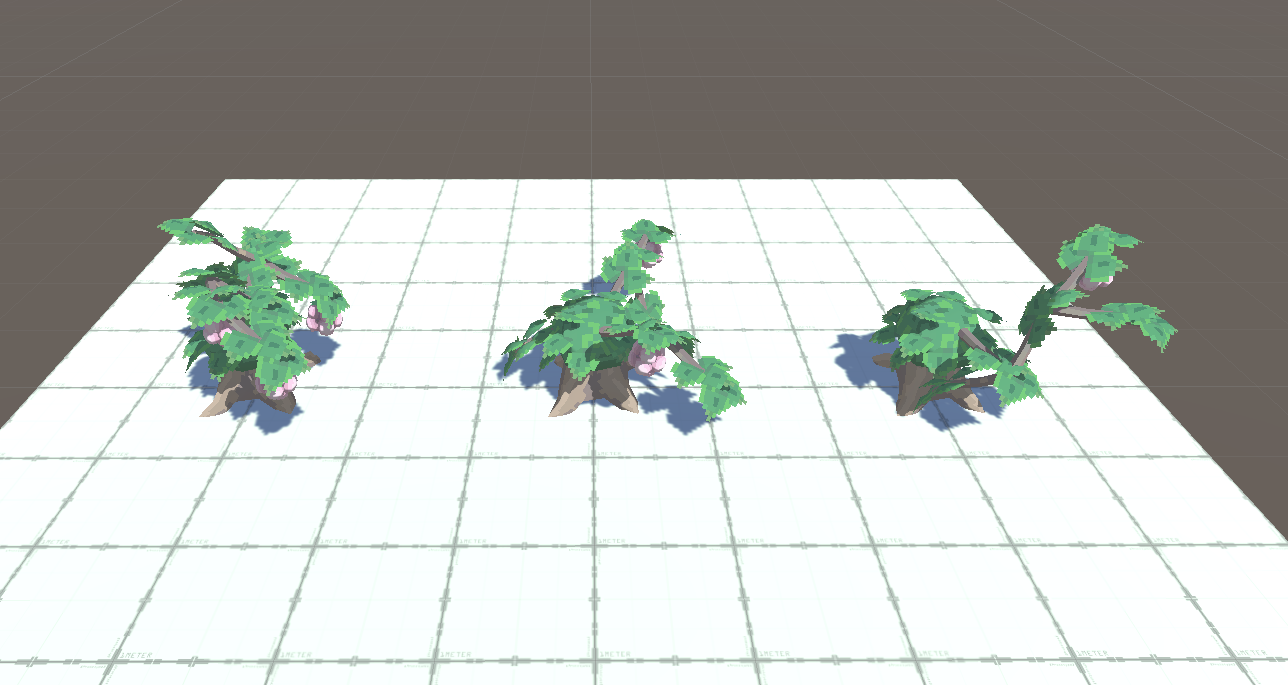

2018-10-11 at 11.23.55

I just need to add a little method for applying durability damage to surfaces.

Plant can keep a list of surfaces that it touched when growing, those shouldn’t really change.
PlantSender can iterate over list and apply damage.
- ☝️ Actually this is problematic because the durability damage is defined per node not globally.
  - Could store the max damage while building the buckets. Damage is capped anyway.

Okay, implemented weird bucket system.

Week 43

Did some research on writing a shader that would be able to coat objects in a paint.

https://connect.unity.com/p/getting-light-information-with-a-custom-node-in-shadergraph
https://connect.unity.com/p/zelda-inspired-toon-shading-in-shadergraph

Improving the building to be more intuitive. Code wise I think I have to structure it as follows.

Some method takes two points (start and end) and always shows a preview as if you dragged from start to end . end can be a real point or a point projected on some plane from the view ray. The steps to call this method are
- Determine start from the hover (Either ray hit point or pillar top)
- When button not pressed: end == start
- when button pressed: end can be either
  - the actual hovered point (or pillar top)
  - the view ray projected on some plane
    - Horizontal plane for floors
    - A view-aligned plane for pillars
Appropriately clamp the block size.

	top anchor	slide axis	target bottom point
drag to air	clicked point snap	clicked point snap	project on plane perpendicular to slide axis
drag up	hover point	hover point	clicked point
drag down	clicked point	clicked point	hover point

Week 44

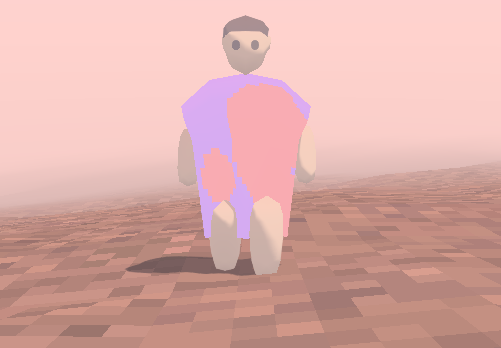

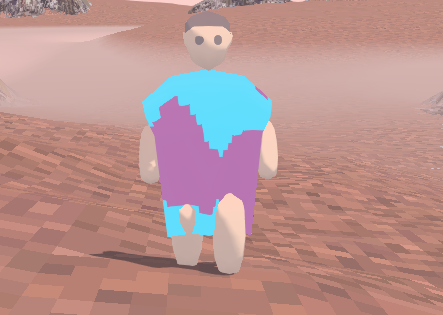

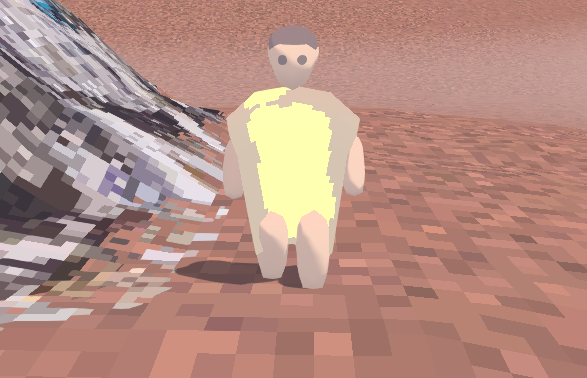

Started with giving the player’s poncho some random colors. This really needs more work to look nice, but at least it will for now distinguish players from each other.

2018-10-29 at 16.26.53

2018-10-29 at 16.28.00

2018-10-29 at 16.29.04

I also fixed a bug that would prevent plants from growing on soil boxes.

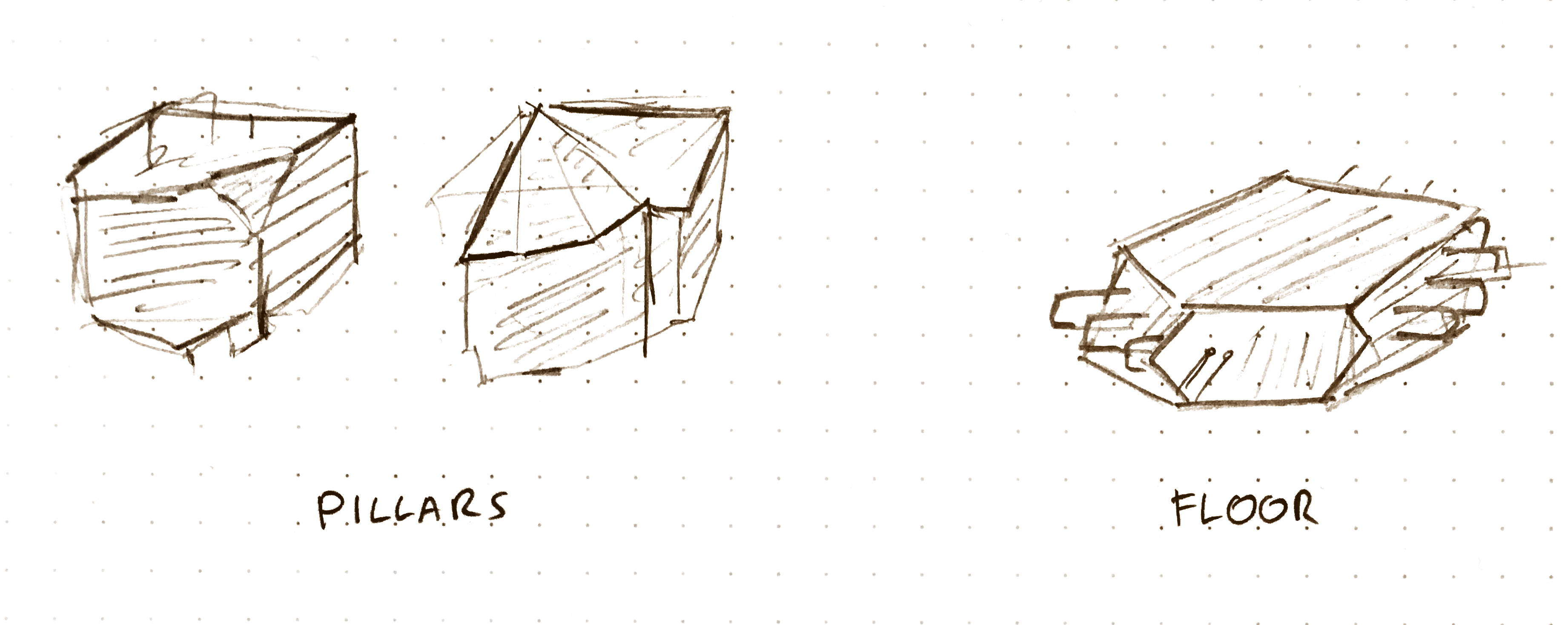

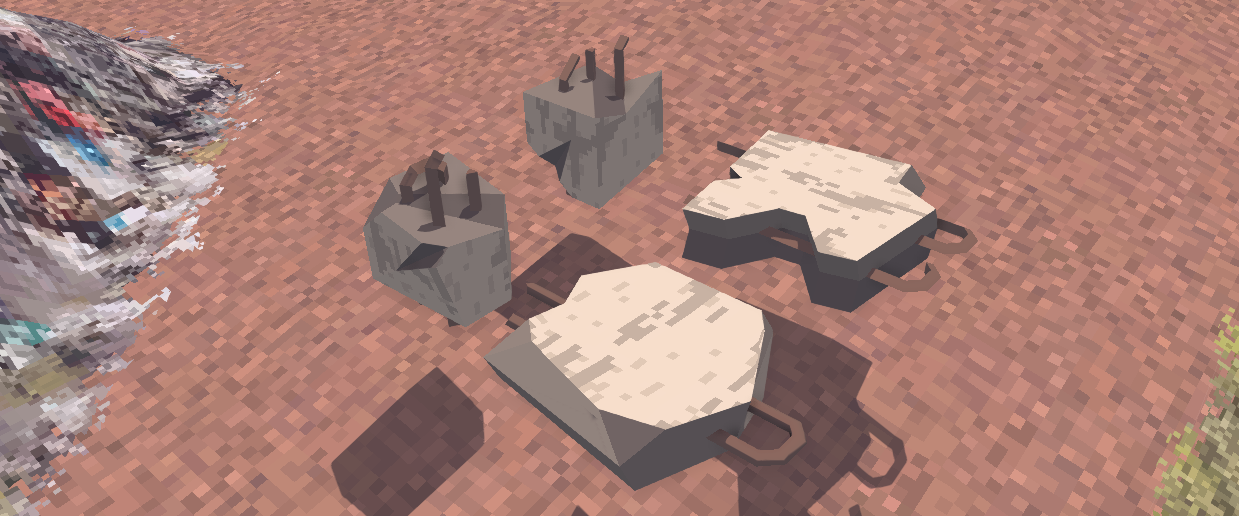

Made some rubble models for when buildings fall apart.

2018-10-30 15.46.03

2018-10-30 at 16.04.41

Today I’m updating the GDK to the newer version so I can dig into the terrain again.

I have to fix up the HUD code a bit to be able to add new visualisations for interaction.

If the HUD highlights an object, and then switches state to another object, the first highlight won’t be removed.

Week 45

Over the weekend I started on rewriting the SpatialOS Entity Template system to something more streamlined. Should make creating new object types (like the rubble from previous week) more focused in a single place. Mostly done with the core system, but I don’t think I can migrate the data neatly from the old system.

Some loose ends remain on the technical front
- Fix the “ItemScene” script to lay out all Mesh Definitions
- Make Plants use Mesh Definitions instead of internal fields for mesh/collider size
- Make a button to create a EntityDefinition from a Mesh Definiton. That will focus activity more on the visual editor
Then I have to create the actual entities
- Create Mesh definitions for:
  - Bamboo Seed.asset
  - Cement Bag.asset
  - Plastic Barrel Soil Container.asset
  - Plastic Barrel.asset
  - Plastic Crate Soil Container.asset
  - Plastic Crate.asset
  - Splat Fruit.asset
  - Tire Soil Container.asset
  - Tire.asset
  - Vine Seed.asset
  - Wood Planks.asset
  - Wood Soil Container.asset

Made some progress on generating entity definitions for all objects. The engine can’t USE them yet though.

Tue: Hooked up everything into SpatialOS and it’s running again now. Didn’t add a single feature but this will take away a lot of friction in the future.

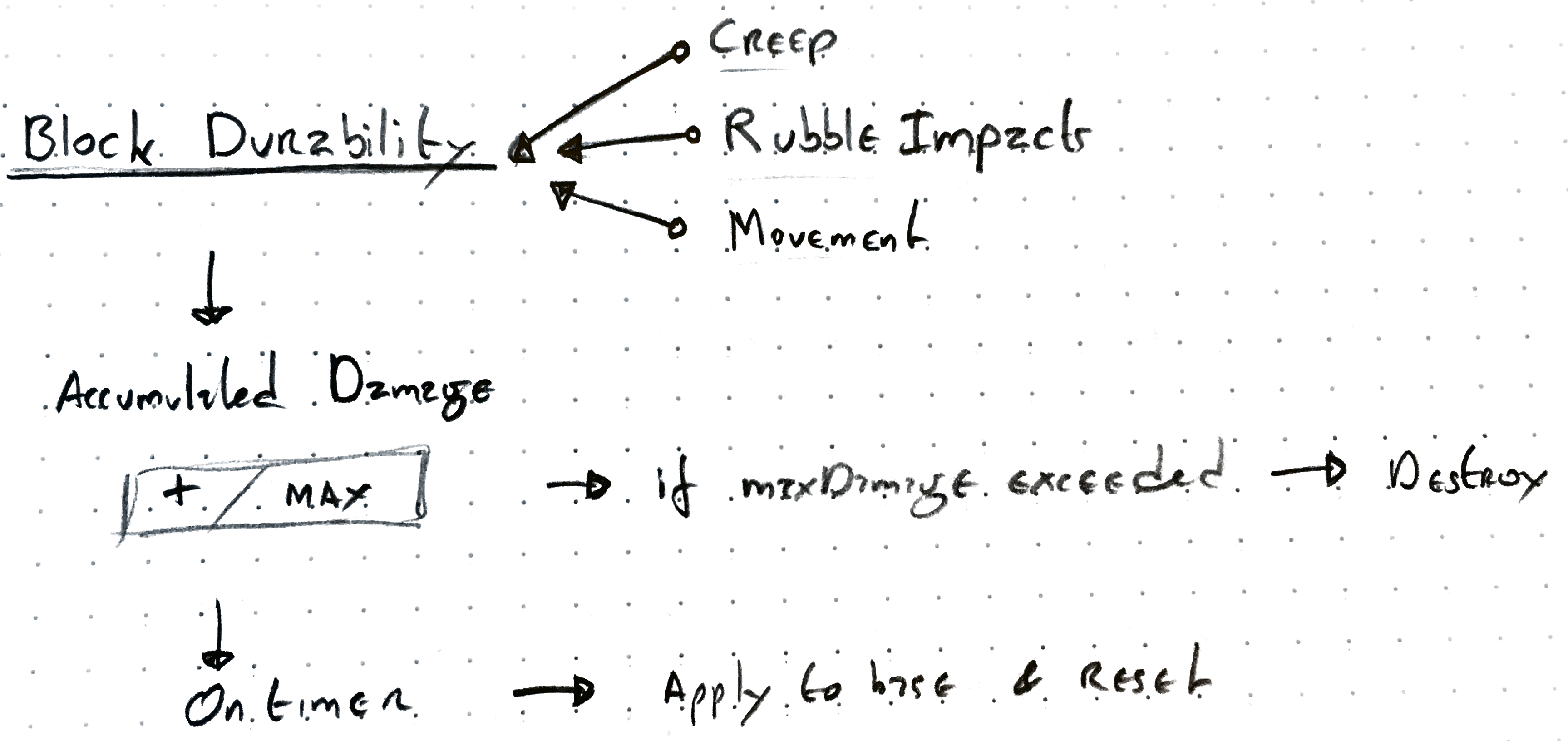

Wed: Okay, small issue. The blocks can’t really alter their behaviour when moving, because their rigidbodies are kinematic, because the real movement is done by a proxy. I can fix it but I have to write some code.

The system will look like this:

2018-11-07 12.37.09

But now I have some problems interfacing the DurabilityDamageSystem with the DurabilitySender because the latter is a MonoBehaviour.

https://forum.unity.com/threads/whats-the-best-approach-for-hybrid-ecs.551386/#post-3648499

Thu: Working on the rubble.

https://gfycat.com/OldfashionedApprehensiveDarwinsfox

Week 46

Yesterday I fixed up the UI for sending User Reports. It’s pretty neat to just send a screenshot and a short text from inside the game. However, today I need to decide what kind of stuff I’m doing before the end of the month.

Mostly, some kind of ‘score’ for how high the player could build. I have some options:

Numbers above the player’s head indicating height. Simple high score.
Some score related to an item built at a height.
- Flag?
- Simply the highest block placed.
- How is this reflected on the player? A high score table? A score floating above?

Taking into account that players will be able to own buildings, it makes sense to require building something to claim the highest spot. Have to take out the high plateaus on the current map as those make it too easy to claim a higher place.

Wednesday: Need to get a bug fixed related to syncing animations over the network.

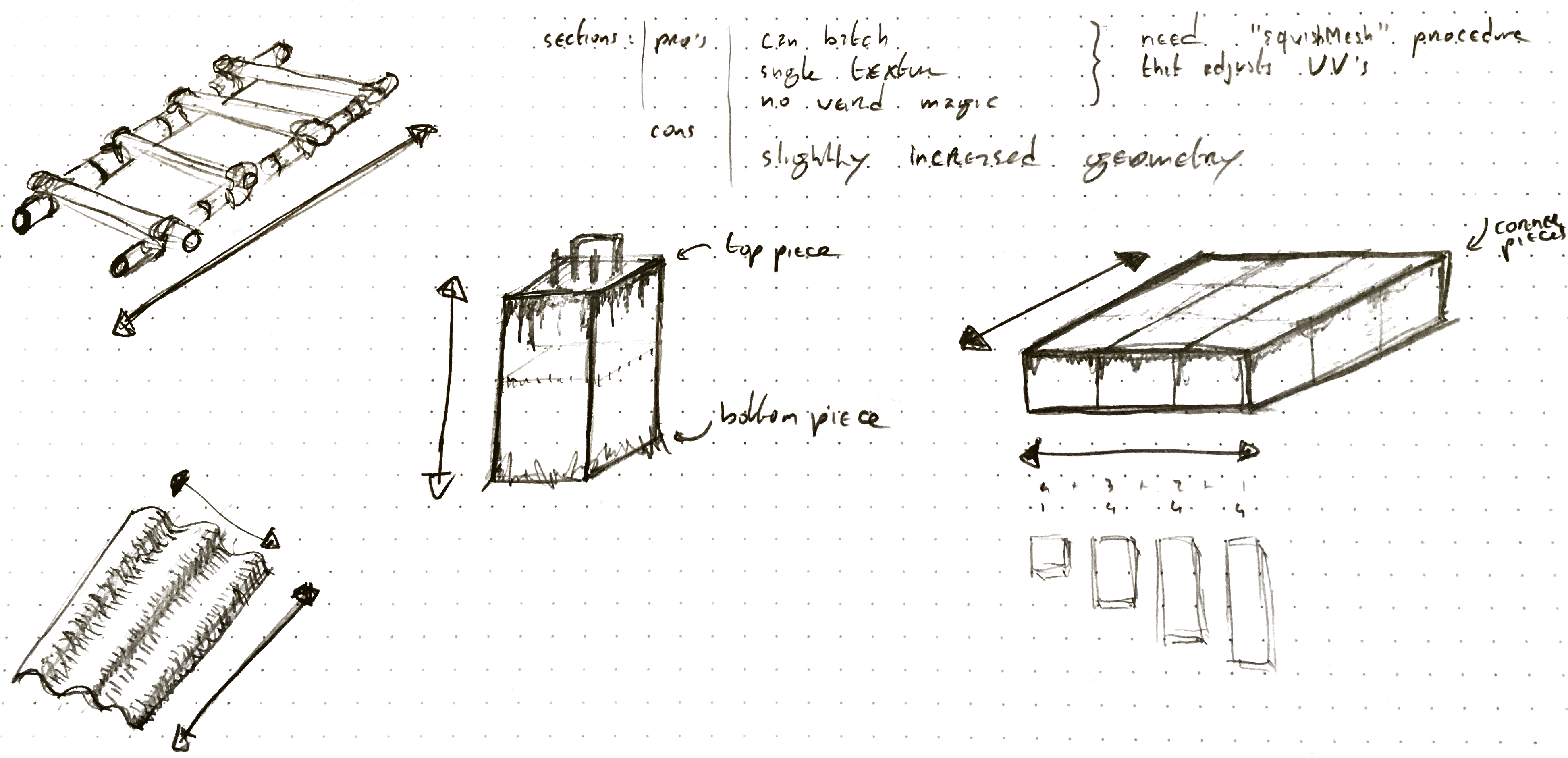

After that I spent some time thinking about how to dynamically generate meshes for the objects that have variable sizes (like boards, ladders and concrete blocks). It seems really tricky if the size is really variable and not discretized into minimum chunks. And even with discretization, if the increment size is small enough, that would generate a whole bunch of ‘sub objects’ that might be unnecessary.

2018-11-14 17.52.16

MeshPart defines whether the part is stretchable or a cap.
- Stretchable parts should define how the Vertex position maps to UVs
MeshBuilder takes parts and assembles them
- MeshBuilder1D
  - Top, bottom, middle (stretchable)
- MeshBuilder2D
  - Corner, edge (stretchable), center (stretchable2d)

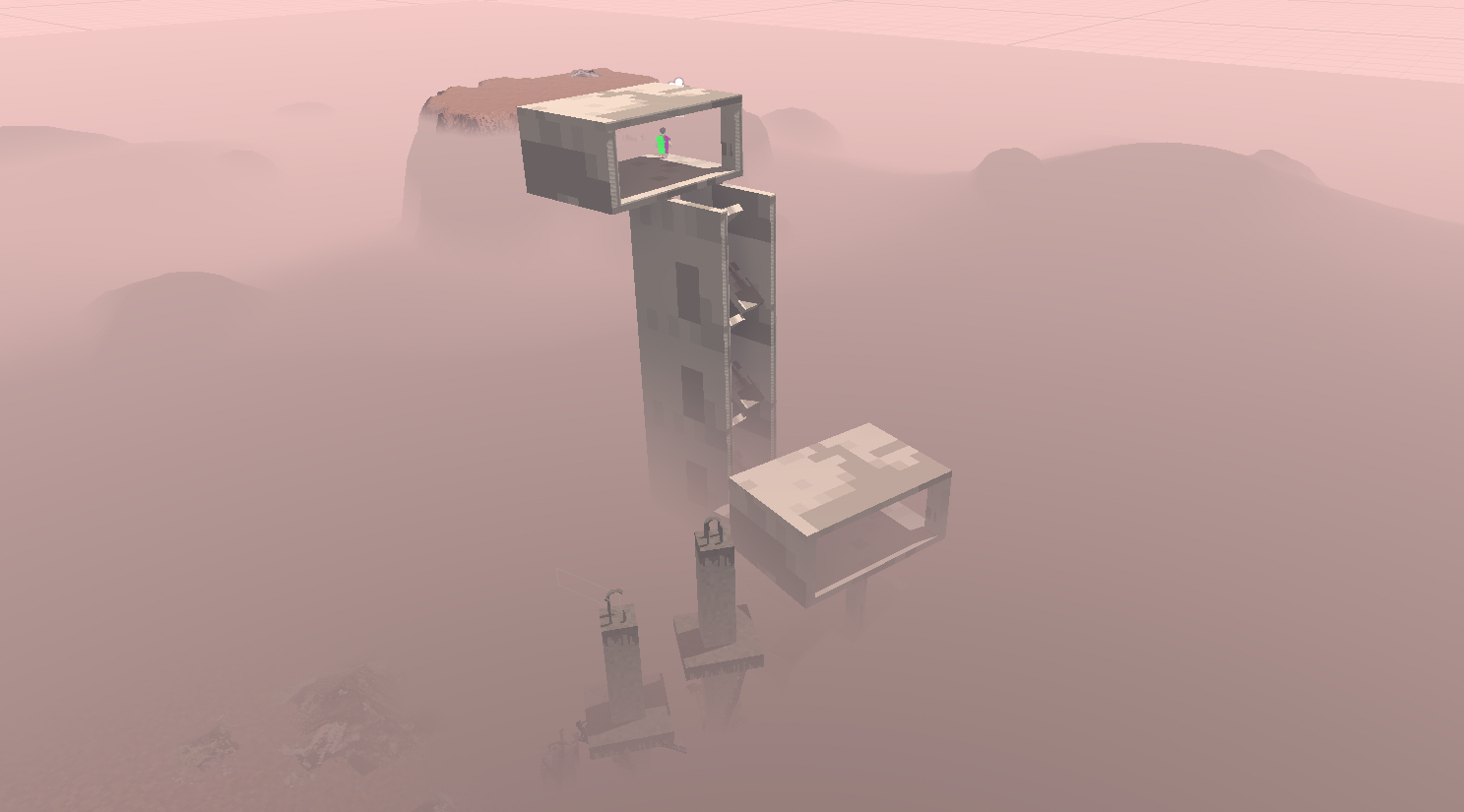

Friday Experimenting with building bigger ‘prefab’ blocks to let the player climb up easier.

2018-11-15 at 17.42.05

But code architecture is getting in my way. Because a lot of the building behaviour is inextricably tied into dynamically-sized blocks.

I probably need to split things in smaller components that manage their own behaviour. More ECS-like. So:

DurabilityModule adds DurabilityReceiver / DurabilitySender
DynamicSize Spatial Component is not added to all blocks.
Pinnable component manages pinned items.
Something else (A PhysicsModule on the EntityDefinition ) handles whether a blocks proxied or not, and whether it is anchored.

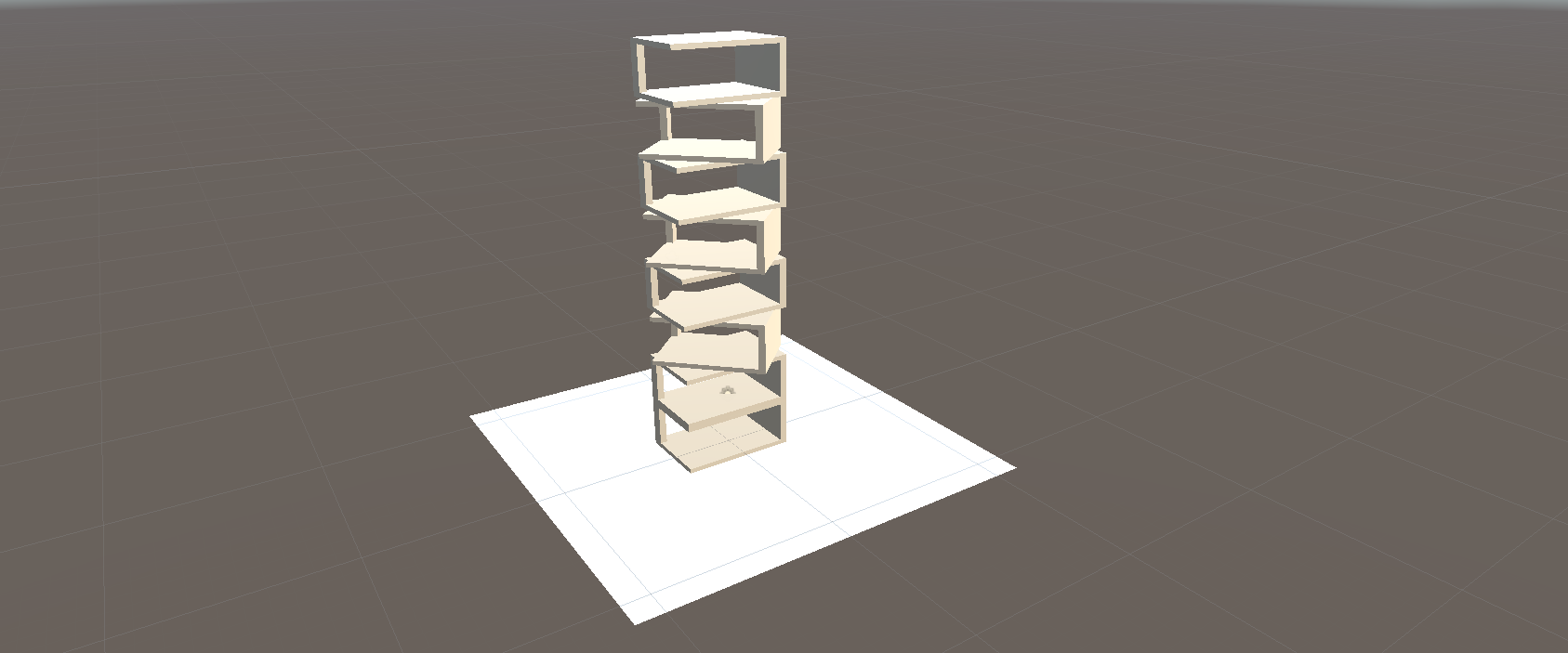

I don’t get it. Something like this:

2018-11-16 at 15.55.55

Super stable in a sandbox scene but in the real simulation it falls apart. Why?!

I’m trying to find out why it’s not stable now. If the simulation settings are different or if the Proxy Body somehow messes with things.

I can also replace the colliders by one box collider for the proxy, but since it works in a sandbox scene I want to find out what causes the difference in stability first!

Week 47

On the first two days of this week I wrote a blog post about stacking physics boxes. Found out that without ridiculous amounts of solver iterations, 12 boxes is pretty much as high as you can go. Beyond that I would need some game mechanics to mitigate the instability.

One more thing I’m going to research today is whether it helps to create wider stacks. That is something players could learn, that they have to build piramid-shaped buildings or at least support the building through side structures.

Create a toggle in the testbed for stack width
See if stacks can be higher than 12 when this is selected: NOPE

So, interestingly it looks like I’ll need additional mechanics to make boxes stable, okay. That’s that then. In 2018.3 I’ll be able to split that stuff out into a separate physics world and maybe increase the iterations on that.

There is one single thing that helps stability, and that is adding Fixed joints. However, adding them to every single block in the tower makes the whole thing behave like a spring. There must be a balance between # of fixed joints, their break force, and their “massScale” that will make the tower more stable but still feel ‘realistic’.

Blocks live in Blocks World.

Everything else is placed on blocks and lives in real world.

Blocks (only) are affected by plants through durability.

Ladders are pinned to blocks in real world.

So what can I do today?

Make a nicer basic block.
Be able to put plants on the basic block.

That would be a victory.

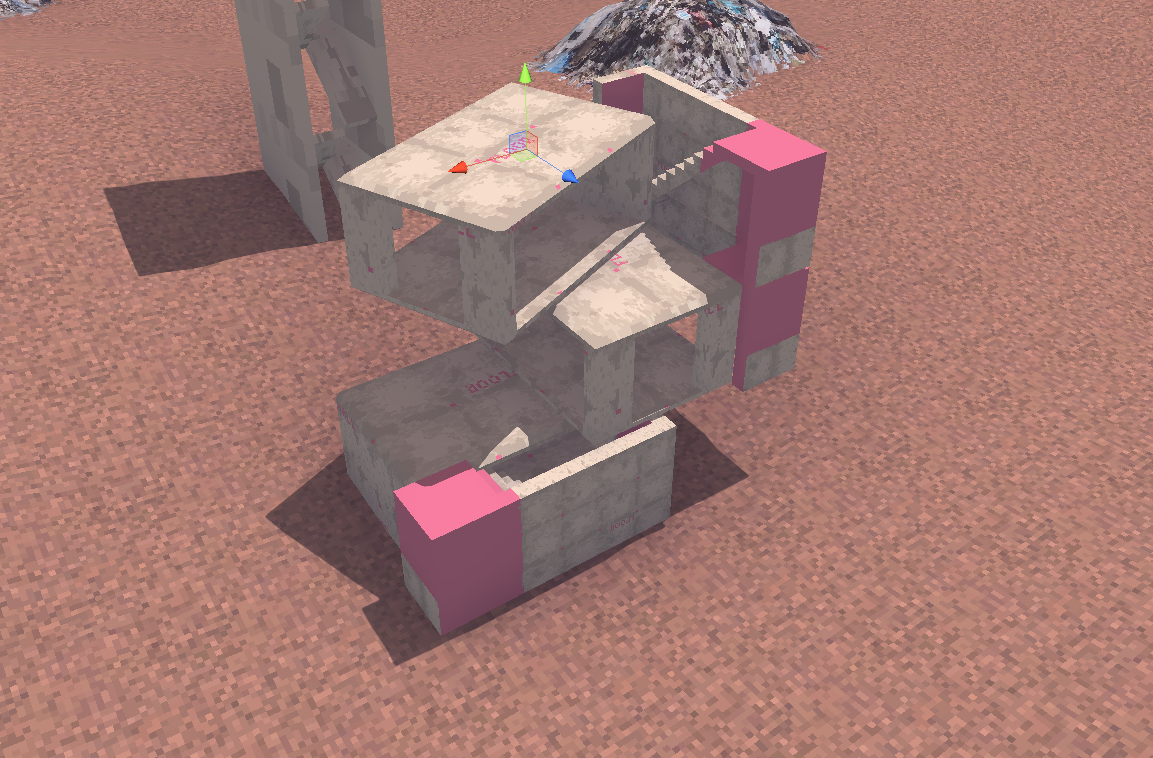

I did some measuring in the scene and discovered that a texture density of 16px per unit looks about right for this game. Some of the plants have a higher density, up to almost twice as much, and the ground texture has about half that resolution. But 16px looks nice and blocky.

2018-11-21 at 18.21.41

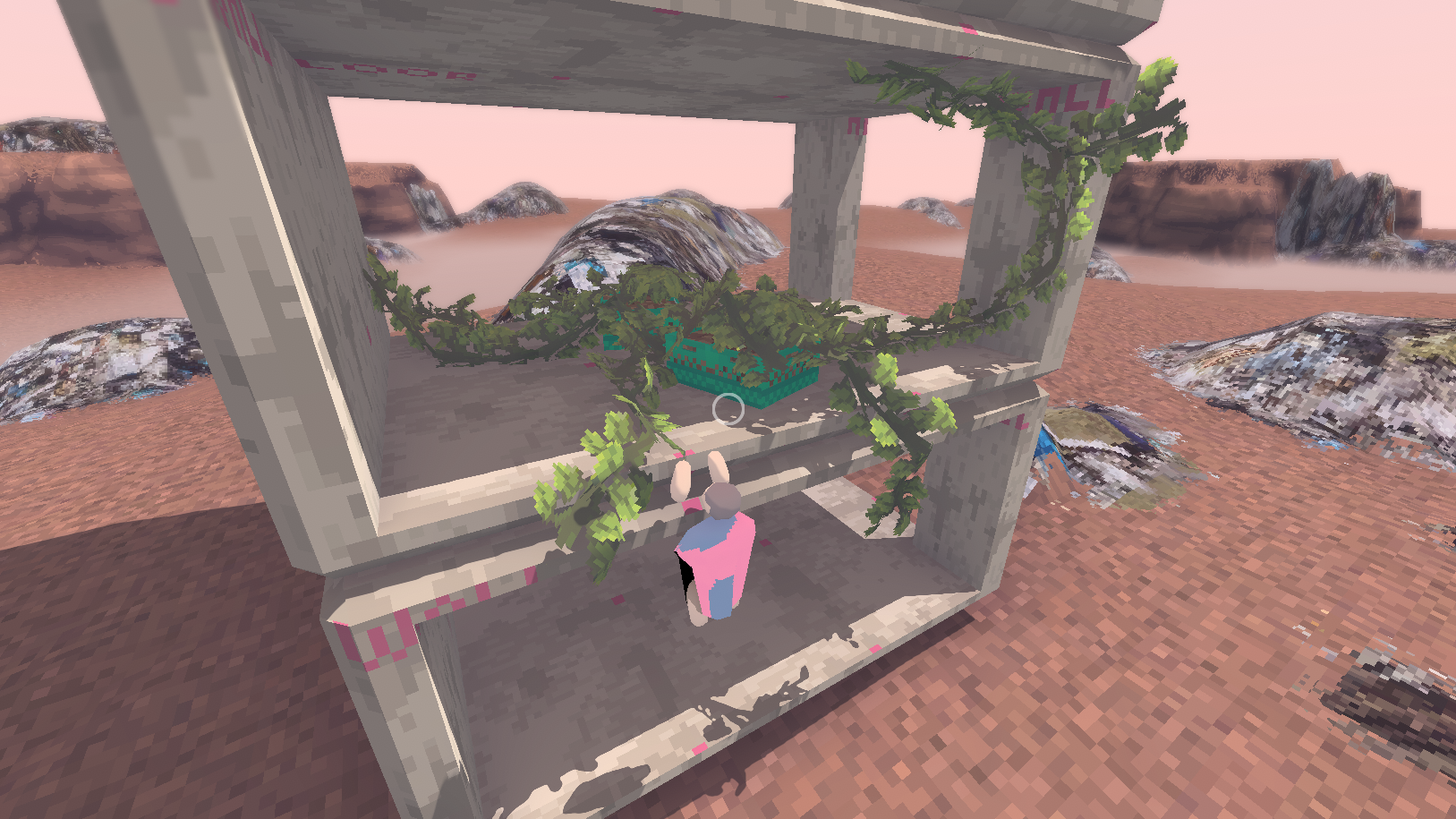

To put plants on the basic prefab blocks, they have to have a Block{Receiver,Sender} component. But the Block components rely on the dynamic size. I’ll have to separate that logic.

Okay, here we go then.

2018-11-22 at 15.33.30

Friday. GOALS: Create a recipe for placing & pinning the big blocks. Should be fun.

Create BigBlockRecipe
- Does construction raycasts in the PROXY world. Except it can’t because proxy world does not exist. Shit.
  - So add the proxy to the client blocks on a separate layer.
- Use that layer in MeshDefinition behaviour too
- Start by just dropping on top
  - and pinning from a fixed side.
- Modifier rotates along pin angle
  - Create pin property on block and create fixedjoint when it has a pin.

Todos for later:

Make prefab blocks 3 units high
Build a ComponentSystem for proxies. Initialisation order between Block/ProxyBody is kind of shitty and unpredictable now
- Step One: Pull ProxyBody behaviour into BlockSender. (Except create only a single collider)
- Nuke BlockReceiver.
- Cleanup the Proxies created by BlockSender
- If blocks lose authority, they should remove the pin.
- [ ]
Repair Block Movement Damage
Repair Initial Creep Growth

Week 48

Okay, let’s recap what I did last week and what the next goal is.

I made some ECS Systems to manage proxies and transform synchronization. This was necessary because the old MonoBehaviours were getting in each others way.
This new system allows pinning blocks to each other. The new ‘BigBlockRecipe’ does this automatically.

To wrap this up I need to:

☝️ Okay nevermind that. Resizable objects are actually wayyy complicated. I can just create a couple of fixed size ladder objects first.

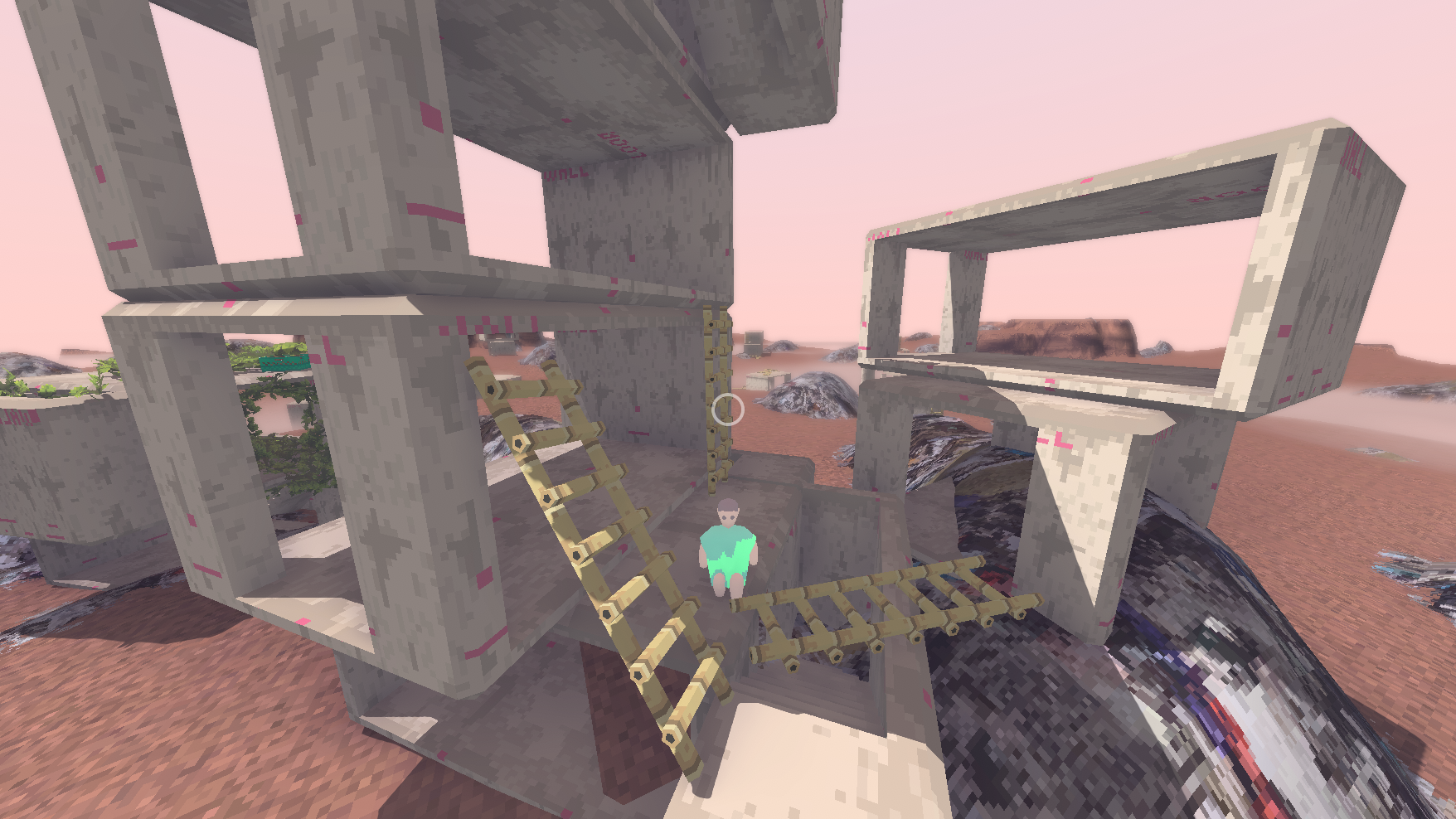

New Plan for Ladders

Create ladder model in blender
Create MeshDef for the ladder
Create a recipe for pinned objects
Actually pin objects
- Pinned property is inside TransformUpdater
- While pinned
  - Position is relative to pinned body
  - Receiver just positions object relative to support
Make ladders climbable

2018-11-28 at 17.17.04

Ladder Game Loop

Bamboo yields Bamboo material
- How to spawn created item in the right place?
Ladders need Bamboo to build
Make (quickly) nicer shader for cutting
Reset buckets when plant is cut

CLEANUP

remove old BlockRecipe
Clean out the BlockReceiver

FUNCTIONALITY TO REPAIR

Creep growing on blocks.
Blocks taking damage (from creep and movement)
Blocks spawning rubble and rubble with particles
MeshDefintion picks random mesh
- Use variation from Entity

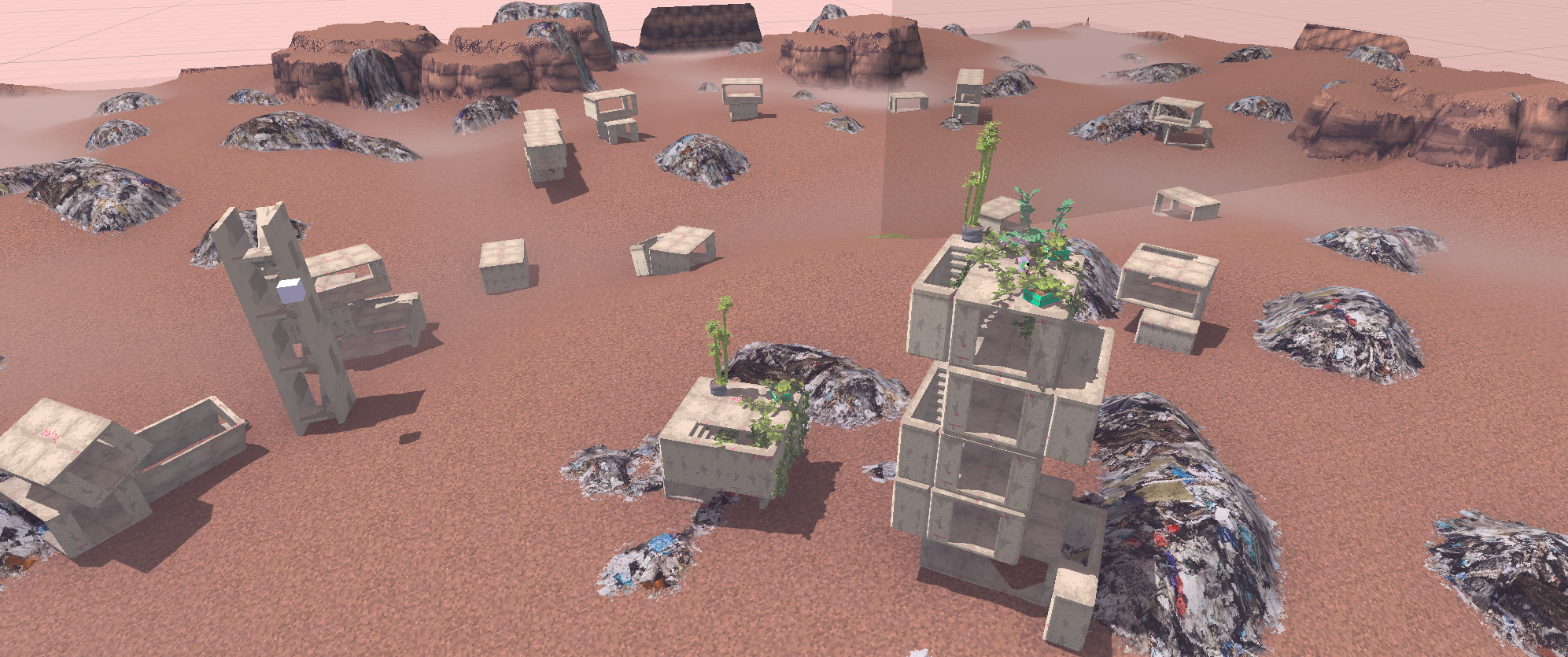

2018-11-27 at 17.51.55

Week 49

Hello week 49. So last week was good, fixed up a bunch of stuff. Now I have to decide what’s important to get back on track for a playtest.

I could:

implement death from falling (or inhaling fog)
rewrite the fog shader in the v2 postprocessing stack.
create tooltips about recipe ingredients and setup blueprint items for blocks
do the bouncy inventory just because it’s fun
fix player movement to hop on low ledges
block durability and rubble with particles

Going to work on the fog because I need something fun to do today.

Deciding how to set up the Fog colors, as a texture or as a bunch of lerped colors.

	Near Fog	Far Fog	Skybox
Time of Day	✅	✅	✅
Altitude	✅	✅	❓

I fixed the mesh variation.

I should write more, about what is wrong and what needs doing. And in a more structured way maybe. So right now I feel like I want to ship a little playtest build but I don’t know what the goal in that game would be. What do I tell players they’re supposed to do? Mess around and build stuff? Currently, you just spawn in the world, and you see a deserted world. If you see the tooltips you might dig around in the trash and then build some stuff.

I don’t feel like doing anything but I’m just gonna do some programming stuff to maybe feel productive again.

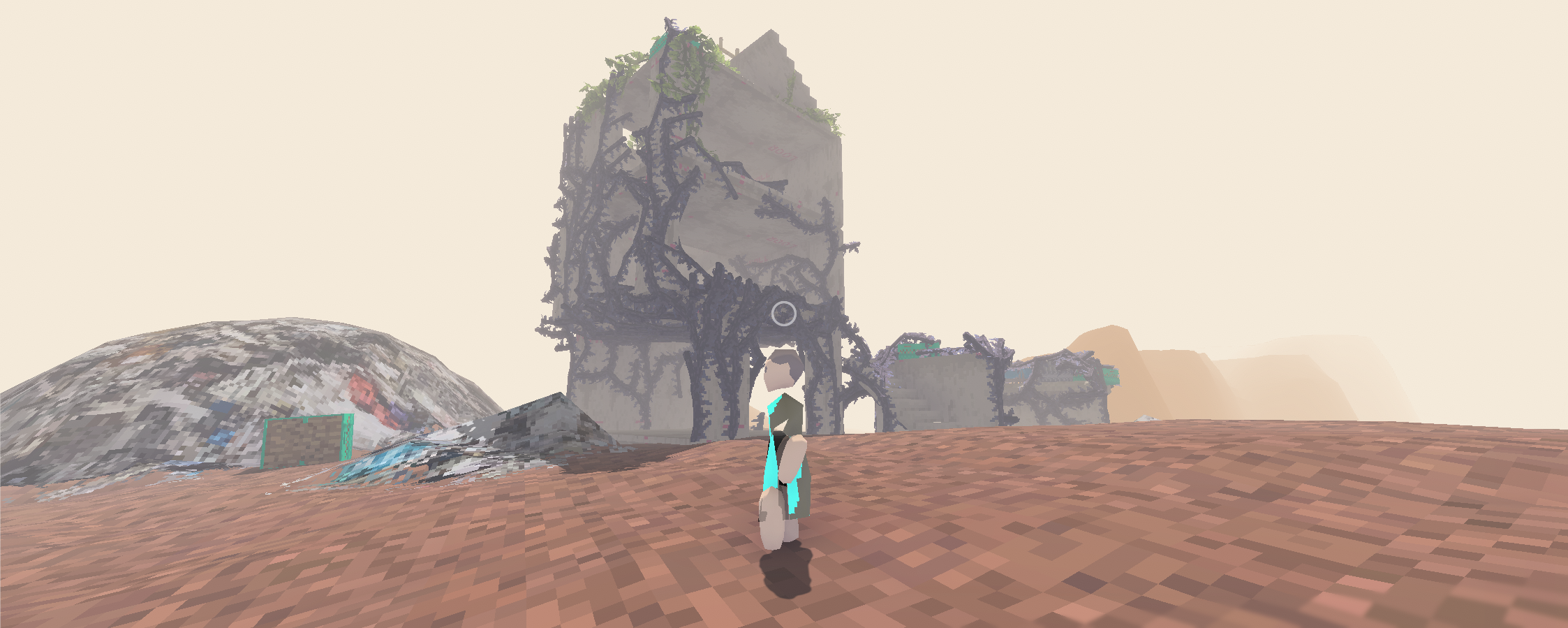

2018-12-05 at 18.42.09

Totally unrelated screenshot

Week 50

Had a kind of breakdown last week when I realised how much stuff I think the game needs versus what is actually there. In other words: it’s too ambitious. Now I have to decide how to deal with that realisation. One idea that occurred to me is to drastically simplify the concept. Get rid of all ‘gamey’ things like resource gathering and scores and focus on the idea of a 100% persistent player-built world in its most simplest form.

Sent this mail to Vitor but maybe it’s relevant.

I’ve been thinking a lot and agonising a little about what to do next. I figured my options are A) quit entirely, B) half-quit or C) don’t quit; just continue with more people. And I think B) is what I’ll do. That is to say, drastically reduce the scope to something that I’ll be able to release by myself in the near-ish future. I was tempted to let it go completely and start on a smaller game without the friction of a multiplayer game. But I think there is something there, and I am still really psyched about games with real persistence. (And honestly, with all of the stuff that was broken in the little playtest, SpatialOS was not one of them! It ran like a charm)

So, plan B would consist of me building a small, free, experimental, multiplayer experience where people can build permanent stuff in a world and jump/climb around in that world. I won’t pretend it’s a game. But there can be two outcomes at that point. Either I’m happy that I finished something and I move on. Alternatively: it’ll be a good demo / pitch for finding people to build the whole of ‘garbage country’ with.

Week 51

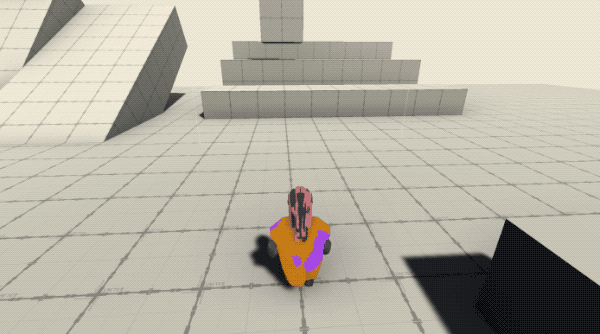

Today, worked a bit on the player movement across obstacles inclucing holding ledges and sliding down surfaces.

2018-12-17-player-movement

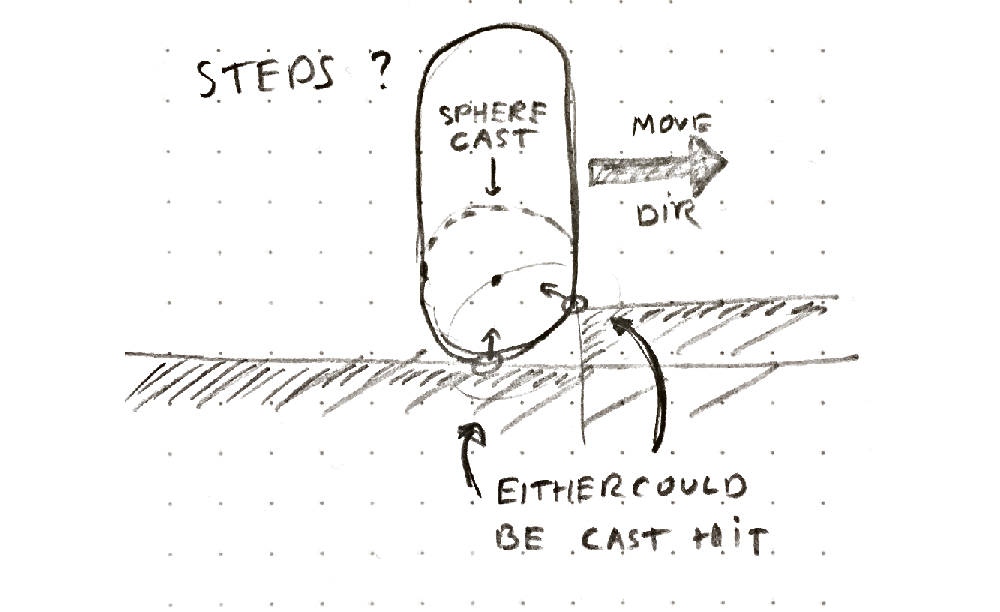

The next thing I want to enable is for the player to seamlessly hop onto small ledges.

2018-12-17 17.56.27

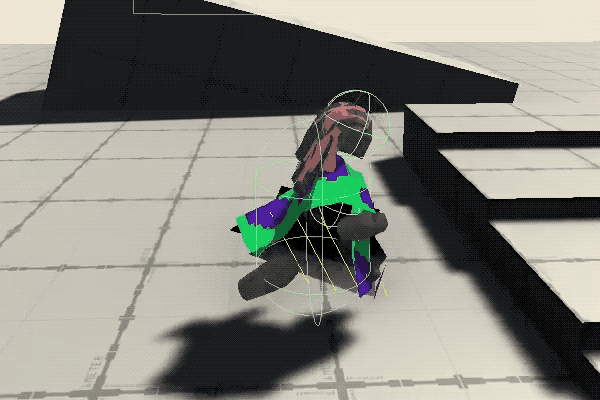

The first approach I tried was with a locked animation. But the problem is that this will hop the player up a slope automatically. Maybe I do need to find a way to make steps a part of natural ground movement.

2018-12-17 19-51-42.2018-12-17 19_56_00

Brainstorming for a new plan

All players start in a big central area. Perhaps they spawn from some kind of devices/niches in the wall.
Prefab blocks are spawned around the existing structure, can be carried as a single item. Holding a block prevents climbing ladders and hanging on ledges, but they can be thrown. They spin around like classic shooter pickups with some sparkly effect on them.
Seeds are also found around the map in the same way. Vines crawl around blocks and lock them in place.
Block placement needs some (a lot?) of work. When standing inside a block, it should be very intuitive to place another block on the side of that. When standing on top of a block: idem. Perhaps the camera should be completely unlocked from the player in placement mode.
- The preview graphics of placing a block should actually represent the block. Look into a shader swap first because that’s the only way to avoid manually creating a representation.
- Worst case I have to manually generate pins on the surfaces of blocks but I’d really rather not.
